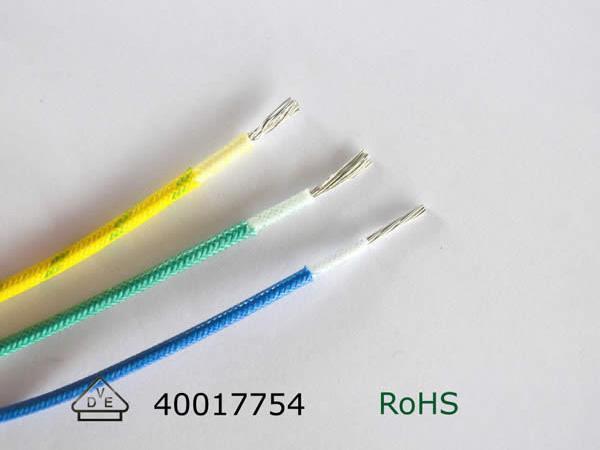

Cable trenzado de silicona VDE
Información detallada
1. Voltaje nominal del cable trenzado de silicona VDE: 300 /500V
2. Voltaje de prueba: 2000V
3. Rango de temperatura: -60°C ~ +180°C
4. Conductor: cobre natural o estañado
5. Aislante: silicona
6. Material tejido: fibra de vidrio
7.Color: blanco, azul, rojo, negro, café, amarillo, verde o amarillo/verde
| Conductor | Aislante | Características eléctricas | |||||
| Área nominal de la sección transversal mm2 | Construcción del conductor NO. xφ mm | Diámetro mm | Grosor nominal mm | Grosor de la fibra de vidrio mm | Diámetro nominal mm | Diámetro máximo mm | Máxima resistencia del conductor a 20℃ Ohm/Km |
| 0.5 | 16/0.20 20/0.18 28/0.15 | 0.94 | 0.6 | 0.15 | 2.5 | 3.3 | 40.1 |
| 0.75 | 42/0.15 24/0.20 30/0.18 | 1.13 | 0.6 | 0.15 | 2.7 | 3.5 | 26.7 |
| 1 | 32/0.20 | 1.31 | 0.6 | 0.15 | 2.9 | 3.7 | 20 |
| 1.5 | 30/0.25 | 1.58 | 0.7 | 0.18 | 3.4 | 4.2 | 13.7 |
| 2.5 | 49/0.25 | 2.06 | 0.8 | 0.18 | 4 | 5 | 8.21 |
| 4 | 56/0.30 | 2.6 | 0.8 | 0.2 | 4.9 | 5.6 | 5.09 |
| 6 | 84/0.30 | 3.18 | 0.8 | 0.2 | 5.6 | 6.2 | 3.39 |
| 10 | 84/0.40 | 4.24 | 1 | 0.25 | 7.3 | 7.8 | 1.95 |
| 16 | 126/0.40 | 5.18 | 1 | 0.25 | 8.4 | 9.1 | 1.24 |
| 25 | 196/0.40 | 7.1 | 1.2 | 0.3 | 10.3 | 10.6 | 0.795 |
| 35 | 276/0.40 | 9.2 | 1.2 | 0.3 | 12.2 | 12.1 | 0.565 |
| 50 | 396/0.40 | 10.3 | 1.4 | 0.35 | 14.3 | 14.4 | 0.393 |
| 70 | 360/0.50 | 12.4 | 1.4 | 0.35 | 16.6 | 16.6 | 0.277 |
| 95 | 475/0.50 | 14.5 | 1.6 | 0.4 | 18.6 | 18.8 | 0.21 |
