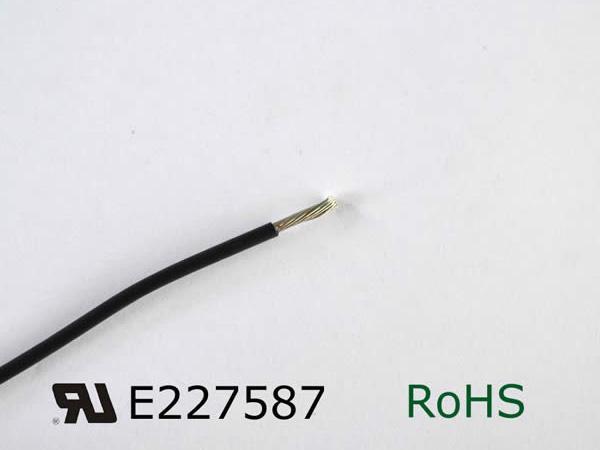

Cable de PVC UL 1007

Información detallada
1. Voltaje nominal del cable de PVC UL 1007: 300V
2. Rango de temperatura: -20°C~80°C
3. Tolerancia del diámetro exterior: ±0.10mm
4. Voltaje de prueba: 1500V
5. Material conductor: Cobre desnudo o estañado
6. Material aislante: PVC
7. Color: blanco, azul, rojo, negro, café, amarillo, verde, transparente, amarillo/verde

Especificaciones
Conductor Aislante Características eléctricas
Calibre AWG Construcción del conductor
NO. xΦ mm
Diámetro
(mm)
Grosor del aislante (mm) Diámetro total (mm) Máxima resistencia del conductor a 20℃ Ohm/Km
30 1 x0.25 0.25 0.38 1.01 381
28 1 x1.31 0.31 0.38 1.07 239
26 7x0.16 0.49 0.38 1.25 150
1x0.40 0.4 0.38 1.16 150
24 11x0.16 0.61 0.38 1.37 94.2
1x0.50 0.5 0.38 1.26 94.2
22 17x0.16 0.76 0.38 1.52 59.4
1 x0.60 0.6 0.38 1.36 59.4
20 20x0.18 0.95 0.38 1.71 36.7
1x0.8 0.8 0.38 1.56 36.7
18 34x0.18 1.21 0.38 1.97 23.2
1x1.0 1.0 0.38 1.76 23.2
