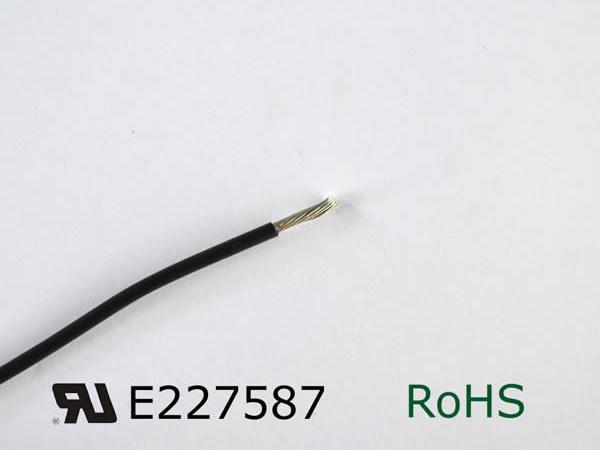

Cable de XLPVC UL 1430

Información detallada
1. Voltaje nominal del cable XLPVC UL 1430: 300V
2. Rango de temperatura: -20°C ~105°C
3. Tolerancia del diámetro exterior: ±0.10mm
4. Voltaje de prueba: 1500V
5. Conductor: Cobre desnudo o estañado
6. Aislante: XLPVC
7. Color: blanco, azul, rojo, negro, café, amarillo, verde, amarillo/verde

Especificaciones
Conductor Aislante Características eléctricas
Calibre AWG Construcción del conductor NO. xΦ(mm) Diámetro (mm) Grosor del aislante (mm) Diámetro total (mm) Máxima resistencia del conductor a 20℃ Ohm/Km
30 1x0.25 0.25 0.38 1.01 381
28 1x1.31 0.31 0.38 1.07 239
26 7x0.16 0.49 0.38 1.25 150
1x0.40 0.4 0.38 1.16 150
24 11x0.16 0.61 0.38 1.37 94.2
1x0.50 0.5 0.38 1.26 94.2
22 17x0.16 0.76 0.38 2.28 59.4
1x0.60 0.6 0.38 2.12 59.4
20 20x0.18 0.95 0.38 2.47 36.7
1x0.8 0.8 0.38 2.32 36.7
18 34x0.18 1.21 0.38 2.73 23.2
1x1.0 1.0 0.38 2.52 23.2
16 26x0.25 1.47 0.38 2.23 14.6
