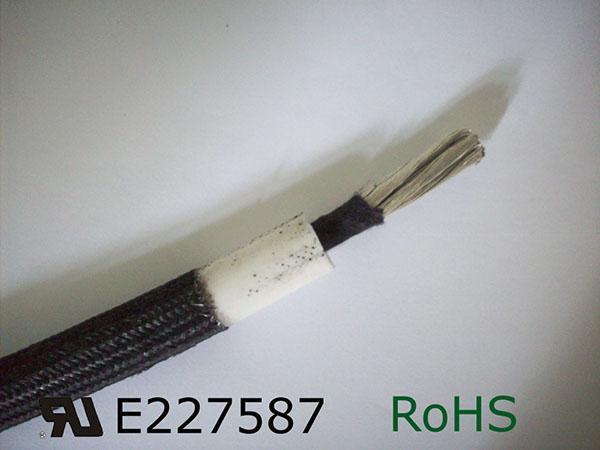

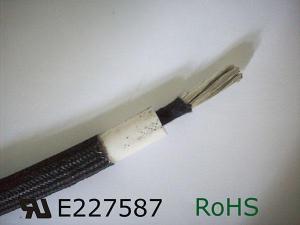

Cable con resistencia a altos voltajes UL 3663
Especificaciones técnicas
Voltaje nominal: 7200VAC
Rango de temperatura: -60℃~180℃
Conductor: cobre chapado en hojalata, níquel y plata
Aislante: goma de silicona
Entretejido: plástico reforzado con vidrio
Colores: blanco, azul, rojo, negro, marron, amarillo, verde, transparente, amarillo/verde
Usos: para uso en cableado interno
| Conductor | Aislante | Características eléctricas | |||
| CAE | Construcción del conductor NO.×Φmm | Diámetro mm | Espesor del aislante mm | Diámetro total mm | Realst.max Cuc，c20℃ Ohm/Km |
| 16 | 7/0.49 | 1.47 | 2.29 | 6.05 | 14.6 |
| 15 | 33/0.254 | 1.75 | 6.33 | 11.3 | |
| 14 | 41/0.254 | 1.95 | 6.53 | 8.96 | |
| 13 | 52/0.254 | 2.15 | 6.73 | 7.1 | |
| 12 | 65/0.254 | 2.5 | 7.08 | 5.64 | |
| 11 | 83/0.254 | 2.74 | 7.32 | 4.48 | |
| 10 | 35/0.45 | 3.2 | 7.78 | 3.55 | |
| 9 | 53/0.40 | 3.98 | 8.56 | 2.81 | |
| 8 | 70/0.40 | 4.4 | 8.98 | 2.3 | |
| 7 | 84/0.40 | 4.6 | 9.18 | 1.79 | |
| 6 | 105/0.40 | 5.3 | 9.88 | 1.42 | |
| 5 | 133/0.40 | 6 | 10.58 | 1.12 | |
| 4 | 168/0.40 | 6.8 | 11.38 | 0.89 | |
| 3 | 213/0.40 | 7.6 | 2.67 | 12.94 | 0.707 |
| 2 | 266/0.40 | 8.5 | 13.84 | 0.56 | |
| 1 | 217/0.50 | 9.6 | 14.94 | 0.449 | |
| 1/0 | 276/0.50 | 11.2 | 16.54 | 0.355 | |
| 2/0 | 342/0.50 | 12.2 | 17.54 | 0.282 | |
| 3/0 | 437/0.50 | 13.8 | 19.14 | 0.223 | |
| 4/0 | 551/0.50 | 15.5 | 20.84 | 0.177 | |
